Shoring Props

Shoring Props -

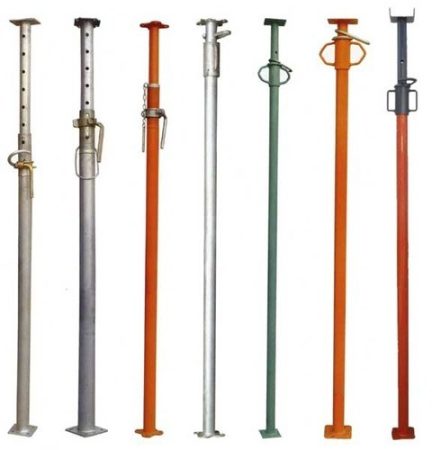

Shoring Props as the name suggests are used in shoring works .These are telescopic and adjustable struts that support load at top. There are many types used in construction industry based on the usage, the most common being – Standard Vertical Adjustable Props and Inclined Adjustable Props.

Standard-

All Our Props are in compliance with Standard EN 1065.

Accessory –

Props have different parts which are also sold as accessory also by us such as Base Plates, Locking Pin, Prop Sleeve.

Classes –

A B C D.

Tube Sizes –

40/48 mm, 42/50.8 mm, 42/56 mm, 42/57 mm, 48/56 mm, 48/57 mm, 48/60 mm, 60/70 mm and 60/76 mm.

Item Code	Close and Open Length	Plate Size	Inner Tube/Outer Tube	Tube Thickness	Nut type
SFPR - 01	1.75 - 3.0 m	120x120x5mm	40/40 , 48/56	As per Client Request / Usage	Cup Nut , Casted Nut and Forged nut with L type handle.
SFPR - 02	1.80 - 3.2 m	120x120x5mm	40/48,42/50.8,48/56,48/57,48/60
SFPR - 03	1.98 - 3.5 m	120x120x5mm/ 120x120x6mm	40/48,42/50.8,48/56,48/57,48/60
SFPR - 04	2.20 - 4.0 m	150x150x8mm	48/60,60/70,60/76
SFPR - 05	3.10- 5.5 m	150x150x8mm	48/60,60/70,60/76

Testing –

Surface Finish –

Tripod

Model : SF-TR1 For 40mm prop tube to 60 mm prop Tube.

Tripods provide Support assembly for the Shoring Props during assembly at construction sites. They are designed as per the shoring prop tube sizes and weights which they support.

Surface finish – Electro Galvanized and Hot Zinc surface finished.
