Part and Accessories of

Ring Lock System

SSCAFFARM RING LOCK SYSTEM is a system that has been designed for faster assembly and disassembly. Ringlock system consists of Verticals called as standards, horizontals called as ledgers and diagnols called as braces.

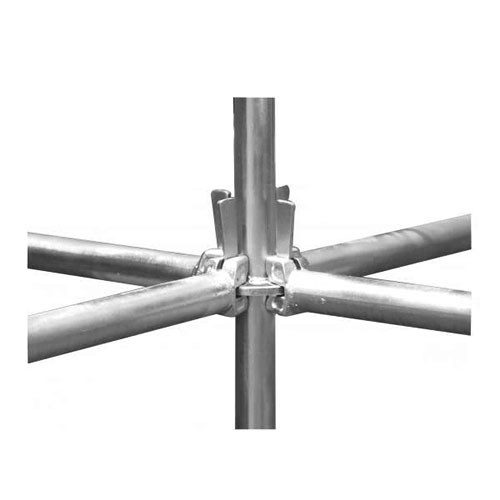

All these parts are joined with help of rosette ring that acts a module therefore it is also called a modular system.All the parts when joined in a connection make a strong bay which can be used as a façade on which scaffolders stand and work. The system can also be used as a shoring system by altering the few sizes and specifications of the different parts.

The main advantage of this system are the ends welded on tubes which provide quick dismantle for the workers. Also the maximum 8 number of connections can be made at each rosette.

Setting Up a bay –

1. Place all the Jacks followed by the Base Collars.
2. Connect the Base Collars using the ledgers.
3. On all the Base Collars place the standards.
4. Place all the Jacks followed by the Base Collars.
5. At Every Rosette you can have 8 connections.
6. Using Hammer make a connection with all the standards by ledgers and Diagonals.
7. Place the Steel planks , Walk boards and staircases as per your project or site requirements.

Benefits of SSCAFFARM Ring-lock System

Time Saving
Strong and Robust.
No nails requirement.
35KN Working Load per Standard.
8 Connections can be setup at each Rosette.
Easy to Transport the scaffold parts of ringlock system for a big façade in a one truck.
No skilled labour requirement for the assembly.
All the types of structures round or straight can be covered with this system.
Custom lengths and needs can be fulfilled with this system.
RInglock tower can be made mobile for movements using castor wheels. (700 Kg safe weight allowed per castor wheel ).

Ringlock System Parts

Base Jack –

Transmits load on the ground and maintains level at all the Verticals so that platform is stable. The height adjustment is achieved with movement of nut.

Size used with Ringlock System –

38 x 4 x 610 mm
Wt – 3.29 kg

Base Collar –

– It Ensures that connection between the ledger and standards are at right angle and they are correctly aligned.

Size used with Base Collar –

Size – 330 mm
Weight – 2.3 Kgs

Size – 290 mm
Weight – 2.21 Kgs

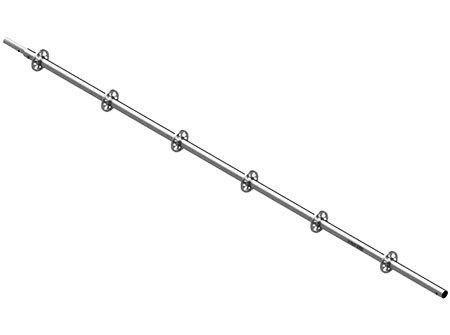

Standard/Vertical

It transmits load from top through verticals to the base. It has Ring Rosettes welded at every 500 mm gap. The ledgers and diagnol connections are made at these ring rosette points.

Item Code	Size Of Vertical	Pipe Size	Weight
SF-RLS -01	Vertical 500 mm	48.3x3.2	2.9
SF-RLS - 02	Vertical 1000 mm	48.3x3.2	5.4
SF-RLS - 03	Vertical 1500 mm	48.3x3.2	7.8
SF-RLS - 04	Vertical 2000 mm	48.3x3.2	10.2
SF-RLS - 05	Vertical 2500 mm	48.3x3.2	12.4
SF-RLS - 06	Vertical 3000 mm	48.3x3.2	15.02

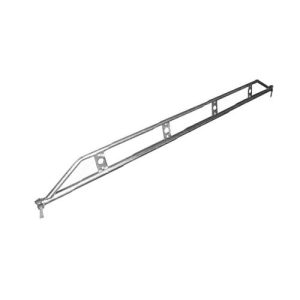

Ledgers / Horizontal

It is like a structural element that is used to provide structure a support and also works as the deck for the walk boards or planks. It has two heads known as ledger ends which help to connect with rosettes on the vertical.

Item Code	Size Of Ledger	Pipe Size	Weight
SF-RLL - 01	Ledger 0.610 m	48.3x3.2	2.89
SF-RLL - 02	Ledger 0.732 m	48.3x3.2	3.34
SF-RLL - 03	Ledger 0.910 m	48.3x3.2	4.06
SF-RLL - 04	Ledger 1.040 m	48.3x3.2	4.55
SF-RLL - 05	Ledger 1.222 m	48.3x3.2	5.22
SF-RLL - 06	Ledger 1.400 m	48.3x3.2	5.95
SF-RLL - 07	Ledger 1.520 m	48.3x3.2	6.4
SF-RLL - 08	Ledger 1.572 m	48.3x3.2	6.58
SF-RLL - 09	Ledger 1.830 m	48.3x3.2	7.57
SF-RLL - 10	Ledger 2.072 m	48.3x3.2	8.5

Item Code	Size Of Ledger	Pipe Size	Weight
SF-RLL - 11	Ledger 2.130 m	48.3x3.2	8.74
SF-RLL - 12	Ledger 2.572 m	48.3x3.2	10.42
SF-RLL - 13	Ledger 2.740 m	48.3x3.2	11.05
SF-RLL - 14	Ledger 3.072 m	48.3x3.2	12.34

Diagnols or Braces

It provides rigidity to the whole structure. It is usually put on every third bay or as per the wind speed . Standard sizes of the diagnols are as follows.

Item Code	Size Of Diagnol Width x Height	Pipe Size	Weight
SF-RLB - 01	Diagnol 0.73 x 2.0 m	48.3x3.2	3.9
SF-RLB - 02	Diagnol 0.91 x 2.0 m	48.3x3.2	4.9

Item Code	Size Of Diagnol Width x Height	Pipe Size	Weight
SF-RLB - 03	Diagnol 1.04 x 2.0 m	48.3x3.2	5.7
SF-RLB - 04	Diagnol 1.22 x 2.0 m	48.3x3.2	6.6
SF-RLB - 05	Diagnol 1.44 x 2.0 m	48.3x3.2	7.8
SF-RLB - 06	Diagnol 1.52 x 2.0 m	48.3x3.2	8.3
SF-RLB - 07	Diagnol 1.572 x 2.0 m	48.3x3.2	8.5
SF-RLB - 08	Diagnol 1.83 x 2.0 m	48.3x3.2	10
SF-RLB - 09	Diagnol 2.072 x 2.0 m	48.3x3.2	11.2
SF-RLB - 10	Diagnol 2.13 x 2.0 m	48.3x3.2	11.7
SF-RLB - 11	Diagnol 2.572 x 2.0 m	48.3x3.2	14.1
SF-RLB - 12	Diagnol 3.072 x 2.0 m	48.3x3.2	16.6

Side Bracket

Side Bracket helps in side extension of the bay towards side where bay erection from the ground is not feasible. It is a safe hang erection and is used with walk boards for working.
